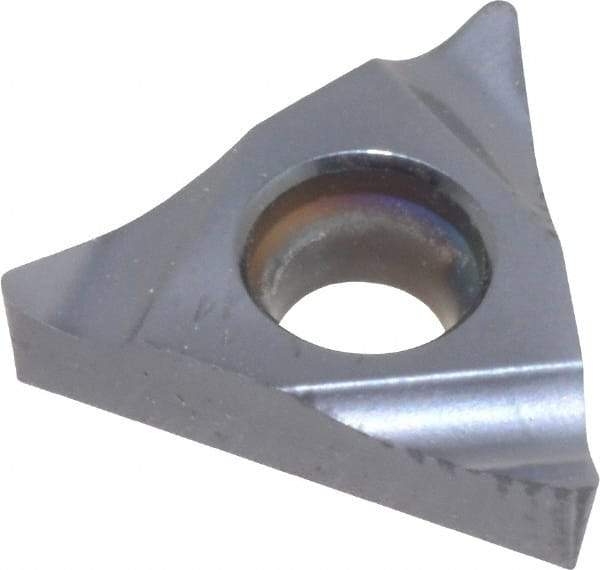

Big Kaiser - TC111623 Grade TAN18 Carbide Boring Insert - TiAlN Finish, 60° Triangle, 7° Relief Angle, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 00569673
Brand: Big Kaiser
Model #: 10.655.383
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TC |
| Insert Size | 111623 |
| Material Grade | C3 |
| Manufacturer's Grade | TAN18 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (Inch) | 3/32 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Coating | TiAlN |
| Rake | Positive |
| Rake Angle | 23 |
| Relief Angle | 7 |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
