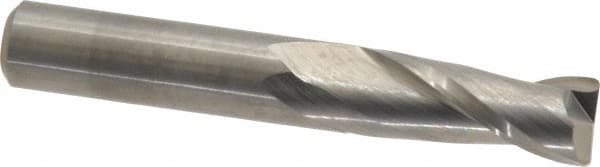

Corner Radius End Mill: 3/8″ Dia, 1″ LOC, 0.03″ Radius, 2 Flutes, Solid Carbide 2-1/2″ OAL, 3/8″ Shank Dia, 30 ° Helix, Bright/Uncoated, Corner Radius End, Centercutting, Series 121
Item #: 00427419
Brand: M.A. Ford?
Model #: 12137503
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 30 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Maximum Helix Angle | 30.00 |
| Mill Diameter Tolerance | +0.000000 to -0.003000 in |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 121 |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
