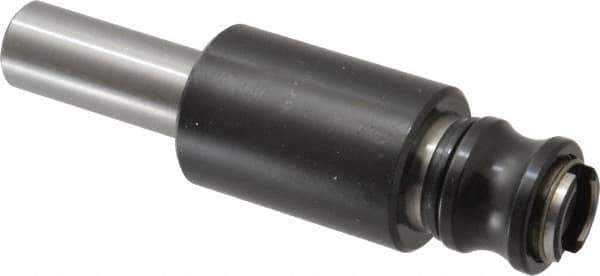

Parlec - 1" Straight Shank Diam Tension & Compression Tapping Chuck - #0 to 9/16" Tap Capacity, 4.43" Projection
Item #: 00363614
Brand: Parlec
Model #: S10-10TA4
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Minimum Tap Capacity (Inch) | #0 |
| Maximum Tap Capacity (Inch) | 9/16 |
| Projection (Decimal Inch) | 4.4300 |
| Quick Change | No |
| Nose Diameter (Decimal Inch) | 1.3900 |
| Tension (Decimal Inch) | 0.5600 |
| Compression (Decimal Inch) | 0.00 to 0.25 |
| Through Coolant | No |
