VT & VIT Power Chuck

2-jaw and 4-jaw wedge type non
through-hole power chuck (adapter excluded)
  • Suitable for special applications :
    Used to hold special shape work pieces, such as square bar or flanges which is not possible clamping by 3 jaw chuck.
  • Interchangable with V or VA series.
  • Basic dimensions are the same as V type.
  • High performance as V type.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Jaws Plunger
Stroke
(mm)		 Jaw stroke
(In Dia.)
(mm)		 Max. Pull
Force
(kgf)		 Max.
Gripping
Force
(kgf)		 Max.
Operating
Pressure
(kgf / cm²)		 Max.
Speed
(r.p.m.)		 Weight
(kg)		 Moment Of
Inertia
I
(kg．m²)		 Matching
Cylinder		 Matching
Hard Jaw		 Matching
Soft Jaw		 Gripping
O.D. Range
(mm)		 SPEC Part Number Price Each
2 20 9.2 1224 3569 17.3 5200 12.3 0.045 MS105C HJ06 HC06 Ø18-Ø165 VT-206 Call or Email
2 21 9.7 1683 5098 16.3 4500 23.1 0.13 MS125C HJ08 HC08 Ø26-Ø210 VT-208 Call or Email
2 25 8.8 1988 7342 19.4 4000 35.1 0.29 MS125C HJ10 HC10 Ø26-Ø254 VT-210 Call or Email
2 30 10.5 2804 10605 18.4 3300 60.3 0.7 MS150C HJ12-1 HC12-1 Ø26-Ø304 VT-212 Call or Email
4 30 10.5 4181 15907 27.5 2800 64.3 0.77 MS150C HJ12-1 HC12-1 Ø26-Ø304 VIT-212 Call or Email
2 35 16 5557 16927 21.7 3000 102.6 1.89 MS200C HJ15-1 HC15-1 Ø68-Ø381 VT-215 Call or Email
4 35 16 8362 25391 32.6 2300 127 3.21 MS200C HJ15-1 HC15-1 Ø98-Ø450 VIT-218 Call or Email

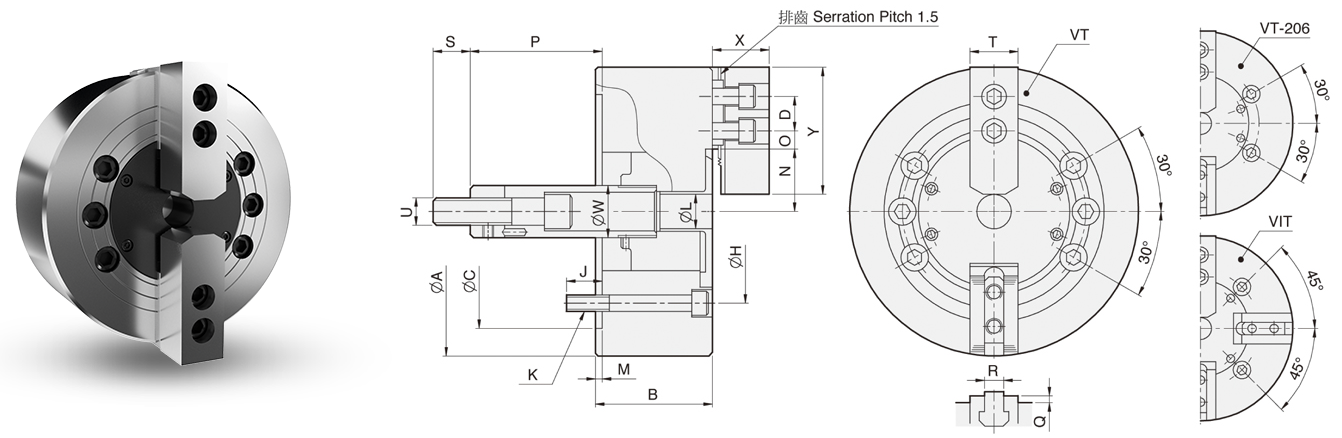

A B C D H J K L M N
max.		 O
max.		 O
min.		 P
max.		 P
min.		 Q R S T U W X Y DIM Part Number Price Each
165 74 140 20 104.78 14 4-M10x70 21 5 38.7 15.25 7.75 104.6 84.6 4 12 36 31 M16x2.0 34 39 73 VT-206 Call or Email
210 85 170 25 133.35 20 6-M12x85 25 5 46.75 22.25 8.75 132 111 5 14 36 35 M20x2.5 38 41 95 VT-208 Call or Email
254 89 220 30 171.45 18 6-M16x85 34 5 51.1 30.75 9.75 158 133 5 16 36 40 M20x2.5 45 46 110 VT-210 Call or Email
304 106 220 30 171.45 23 6-M16x105 34 6 61 48.75 9.75 163 133 5 18 36 50 M20x2.5 50 54 130 VT-212 Call or Email
304 106 220 30 171.45 23 4-M16x105 34 6 61 48.75 9.75 163 133 5 18 36 50 M20x2.5 50 54 130 VIT-212 Call or Email
381 114 300 43 235 29 6-M20x115 --- 6 77.5 49.75 21.25 104 69 2 25.5 55 62 M30x3.5 60 63 165 VT-215 Call or Email
450 114 300 43 235 29 4-M20x115 --- 6 108 49.75 21.25 92 57 2 25.5 55 62 M30x3.5 60 63 165 VIT-218 Call or Email
