VDI BAR PULLER

VDI BAR PULLER
Bar Pullers to fit your DIN 69880 VDI 30MM and 40MM Turret and allow you the flexibility to hold a Variety of Shapes and Diameters of Material: Flat, Hex, Square and Round.
Why use a Bar Puller?
  • They provide a simple and inexpensive method for automating any CNC Lathe.
  • Costs far less than a bar feed.
  • Bar Pullers don’t take up valuable Floor Space.
  • They are Easy to Set up and use-no electrical interface required.
  • Maintenance-Free Operation.
  • They can be easily moved from one machine to another.
  • A wide gripping range is obtained from a very compact design.
  • Gripping Range: 1/8” to 3 1/8” Diameter
Included for Free: a Set of Hard Steel Fingers for your Bar Puller
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

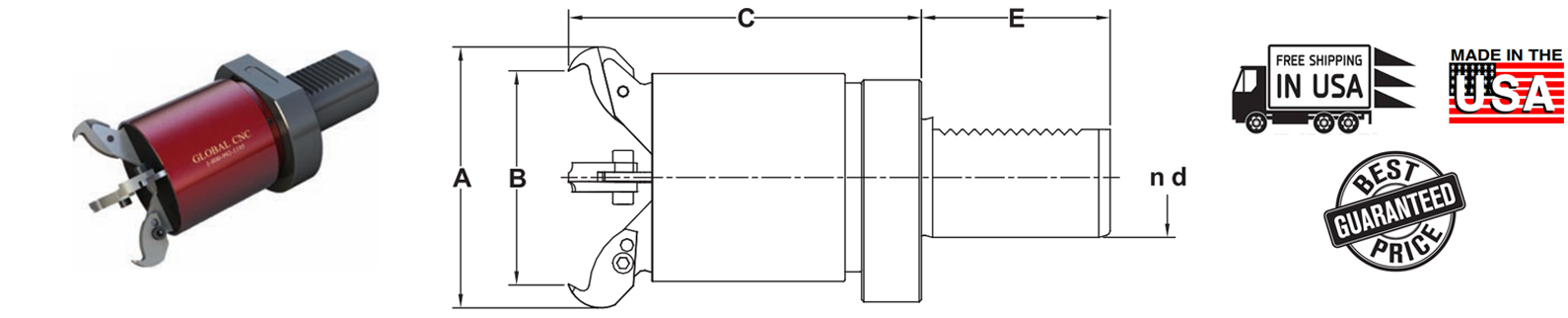

D A B C E Part Number Price
30mm 100 1/8 - 3-1/8 114 55 BP85.30 CALL
40mm 100 1/8 - 3-1/8 118 63 BP85.40 CALL
