Type ZS Bushing (Short Series) - (Inch OD - Inch ID)

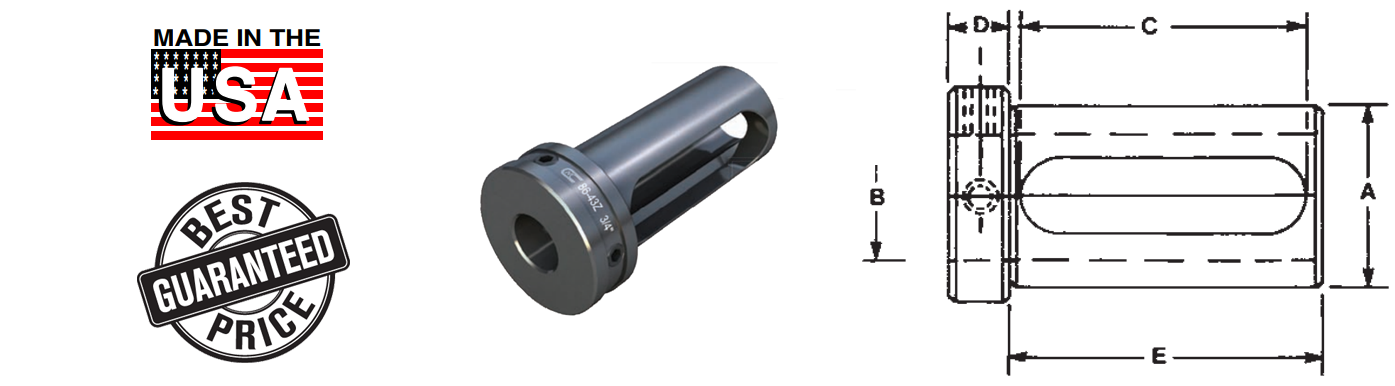

Toolholder Bushing Type “ZS”
The most flexible Toolholder Bushing for all types of CNC Turning Centers, Turret Lathes and Chuckers. The Elongated Slot gives the user a complete interchangeability with all brands of equipment. The added Set Screws in the Head allow for increased rigidity. The bushings are hardened and precision ground concentric. Can also be used for Preset Tooling.

Type ZS Bushings Also Available In: Click Here

  • Inch OD – Metric ID
  • Metric OD – Inch ID
  • Metric OD – Metric ID
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bushing
OD
Length
of Slot
Head
Thickness
Length
Under Head
Bushing
ID
Part Number
A C D E B
1-1/4" 1-7/8" 5/8" 2-1/4" 3/8" CNC 86-42ZS 3/8"
1/2" CNC 86-42ZS 1/2"
5/8" CNC 86-42ZS 5/8"
3/4" CNC 86-42ZS 3/4"
7/8" CNC 86-42ZS 7/8"
1" CNC 86-42ZS 1"
1-1/2" 2-1/8" 3/4" 2-1/2" 3/8" CNC 86-43ZS 3/8"
1/2" CNC 86-43ZS 1/2"
5/8" CNC 86-43ZS 5/8"
3/4" CNC 86-43ZS 3/4"
7/8" CNC 86-43ZS 7/8"
1" CNC 86-43ZS 1"
1-1/4" CNC 86-43ZS 1-1/4"
1-3/4" 2-3/8" 3/4" 2-3/4" 1/2" CNC 86-44ZS 1/2"
5/8" CNC 86-44ZS 5/8"
3/4" CNC 86-44ZS 3/4"
7/8" CNC 86-44ZS 7/8"
1" CNC 86-44ZS 1"
1-1/4" CNC 86-44ZS 1-1/4"
1-1/2" CNC 86-44ZS 1-1/2"
2" 2-5/8" 3/4" 3" 1/2" CNC 86-45ZS 1/2"
5/8" CNC 86-45ZS 5/8"
3/4" CNC 86-45ZS 3/4"
7/8" CNC 86-45ZS 7/8"
1" CNC 86-45ZS 1"
1-1/4" CNC 86-45ZS 1-1/4"
1-1/2" CNC 86-45ZS 1-1/2"
1-3/4" CNC 86-45ZS 1-3/4"
2-1/2" 3-1/8" 3/4" 3-1/2" 5/8" CNC 86-46ZS 5/8"
3/4" CNC 86-46ZS 3/4"
7/8" CNC 86-46ZS 7/8"
1" CNC 86-46ZS 1"
1-1/4" CNC 86-46ZS 1-1/4"
1-1/2" CNC 86-46ZS 1-1/2"
1-3/4" CNC 86-46ZS 1-3/4"
2" CNC 86-46ZS 2"
2-1/4" CNC 86-46ZS 2-1/4"
3" 3-3/8" 3/4" 3-3/4" 1" CNC 86-47ZS 1"
1-1/4" CNC 86-47ZS 1-1/4"
1-1/2" CNC 86-47ZS 1-1/2"
1-3/4" CNC 86-47ZS 1-3/4"
2" CNC 86-47ZS 2"
2-1/4" CNC 86-47ZS 2-1/4"
2-1/2" CNC 86-47ZS 2-1/2"
3-1/2" 3-7/8" 1" 4-1/2" 1-1/4" CNC 86-48ZS 1-1/4"
1-1/2" CNC 86-48ZS 1-1/2"
1-3/4" CNC 86-48ZS 1-3/4"
2" CNC 86-48ZS 2"
2-1/4" CNC 86-48ZS 2-1/4"
2-1/2" CNC 86-48ZS 2-1/2"
3" CNC 86-48ZS 3"
4" 4-3/8" 1" 5" 1-1/2" CNC 86-49ZS 1-1/2"
1-3/4" CNC 86-49ZS 1-3/4"
2" CNC 86-49ZS 2"
2-1/4" CNC 86-49ZS 2-1/4"
2-1/2" CNC 86-49ZS 2-1/2"
3" CNC 86-49ZS 3"
