Type LBF Bushing - (Metric OD - Metric ID)

Toolholder Bushing Type “LBF”
These LBF Type Bushings are manufactured with a flat for clamping the Toolholder and two set screws for clamping a variety of Drills, Boring Bars and other Shank Tools. Equipped with two clearance notches for coolant. Are Heat Treated and precision ground concentric. This Universal Style is good for Coolant Through the Tool applications due to its solid configuration. For use on all Okuma CNC Machines.

Type LBF Bushings Also Available In: Click Here

  • Inch OD – Inch ID
  • Inch OD – Metric ID
  • Metric OD – Inch ID
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bushing
OD
Length
Under Head
Head
Thickness
Bushing
ID
Part Number

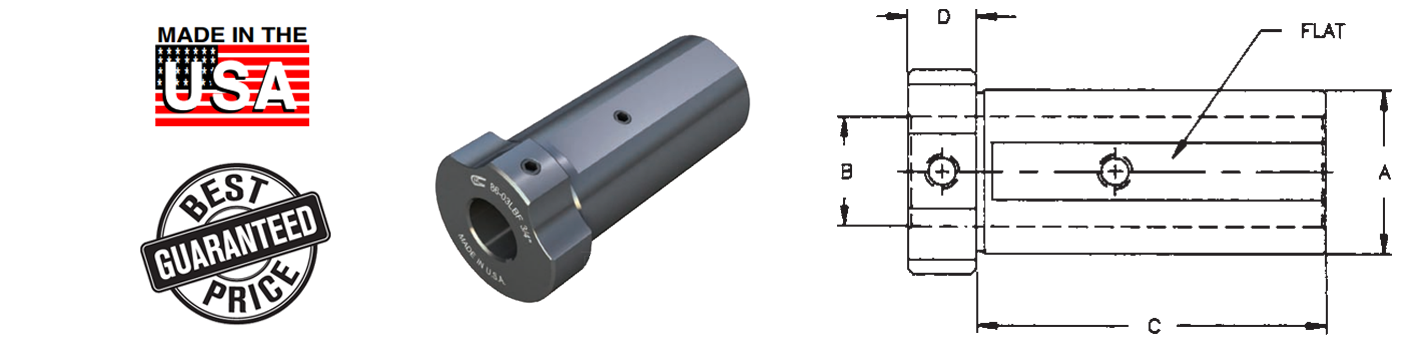

A C D B
32mm 2-13/16" 5/8" 10mm CNC 86-12LBFM 10mm
12mm CNC 86-12LBFM 12mm
16mm CNC 86-12LBFM 16mm
20mm CNC 86-12LBFM 20mm
25mm CNC 86-12LBFM 25mm
40mm 3-5/32" 5/8" 10mm CNC 86-03LBFM 10mm
12mm CNC 86-03LBFM 12mm
16mm CNC 86-03LBFM 16mm
20mm CNC 86-03LBFM 20mm
25mm CNC 86-03LBFM 25mm
32mm CNC 86-03LBFM 32mm
50mm 3-3/4" 3/4" 12mm CNC 86-05LBFM 12mm
16mm CNC 86-05LBFM 16mm
20mm CNC 86-05LBFM 20mm
25mm CNC 86-05LBFM 25mm
32mm CNC 86-05LBFM 32mm
40mm CNC 86-05LBFM 40mm
45mm CNC 86-05LBFM 45mm
