Type L Bushing - (Inch OD - Inch ID)
All “L” style bushings are shoulder-less, have set screw clearance holes opposite the slot and have a split with a flat on the O.D.
“L” Style Bushings are used to adapt drills, boring bars and shank tools to any size in a standard turret or toolholder. CNC has full selection and assortment of these bushings. We can supply these to you, minimizing production downtime – allowing you to increase production.
Type L Bushings Also Available In: Click Here
- Inch OD – Metric ID
- Metric OD – Inch ID
- Metric OD – Metric ID
| Bushing OD |
Overall Length |
Length Dimensions |
Hole Size |
No. of Holes |
Bushing ID |
Part Number | |

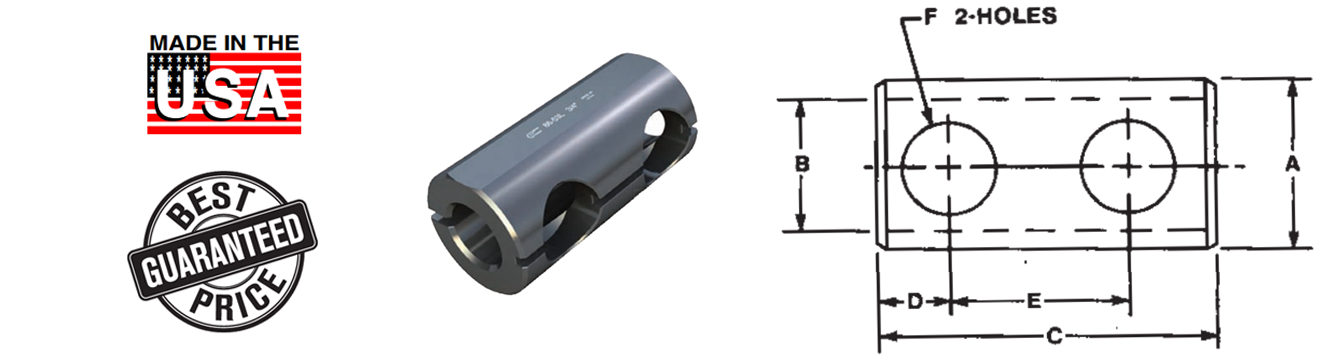

| A | C | D | E | F | B | ||
| 1-1/2" | 3" | 3/4" | 1-5/8" | 7/8" | 2 | 3/8" | CNC 86-53L 3/8" |
| 1/2" | CNC 86-53L 1/2" | ||||||
| 5/8" | CNC 86-53L 5/8" | ||||||
| 3/4" | CNC 86-53L 3/4" | ||||||
| 1" | CNC 86-53L 1" | ||||||
| 1-1/4" | CNC 86-53L 1-1/4" | ||||||
| 1-3/4" | 3" | 3/4" | 1-5/8" | 7/8" | 2 | 1/2" | CNC 86-54L 1/2" |
| 5/8" | CNC 86-54L 5/8" | ||||||
| 3/4" | CNC 86-54L 3/4" | ||||||
| 1" | CNC 86-54L 1" | ||||||
| 1-1/4" | CNC 86-54L 1-1/4" | ||||||
| 1-1/2" | CNC 86-54L 1-1/2" | ||||||
| 2-1/4" | 4-1/2" | 7/8" | 2" | 1" | 2 | 5/8" | CNC 86-56L 5/8" |
| 3/4" | CNC 86-56L 3/4" | ||||||
| 1" | CNC 86-56L 1" | ||||||
| 1-1/4" | CNC 86-56L 1-1/4" | ||||||
| 1-1/2" | CNC 86-56L 1-1/2" | ||||||
| 1-3/4" | CNC 86-56L 1-3/4" | ||||||
| 2" | CNC 86-56L 2" | ||||||
| 2-3/4" | 4-1/2" | 7/8" | 2" | 1" | 2 | 3/4" | CNC 86-57L 3/4" |
| 1" | CNC 86-57L 1" | ||||||
| 1-1/4" | CNC 86-57L 1-1/4" | ||||||
| 1-1/2" | CNC 86-57L 1-1/2" | ||||||
| 1-3/4" | CNC 86-57L 1-3/4" | ||||||
| 2" | CNC 86-57L 2" | ||||||
| 2-1/4" | CNC 86-57L 2-1/4" | ||||||
