Type DD Bushing - (Metric OD - Metric ID)

Toolholder Bushing Type “DD”
With the combination of the industry standard “B” style split bushing and “J” set screw clearance bushing design, CNC has a set a precedent with its new innovative “DD” Double Duty bushing. This new improved “DD” bushing with clearance holes and split milled flat can be used as a conventional “B” style or “J” style bushing. “Double Duty” one of CNC’s latest innovations.

Type DD Bushings Also Available In: Click Here

  • Inch OD – Inch ID
  • Inch OD – Metric ID
  • Metric OD – Inch ID
Special Bore Sizes Available. Call for Quote
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bushing
OD
Length
Under Head
Length
Dimensions
Hole
Size
No. of
Holes
Bushing
ID
Part Number

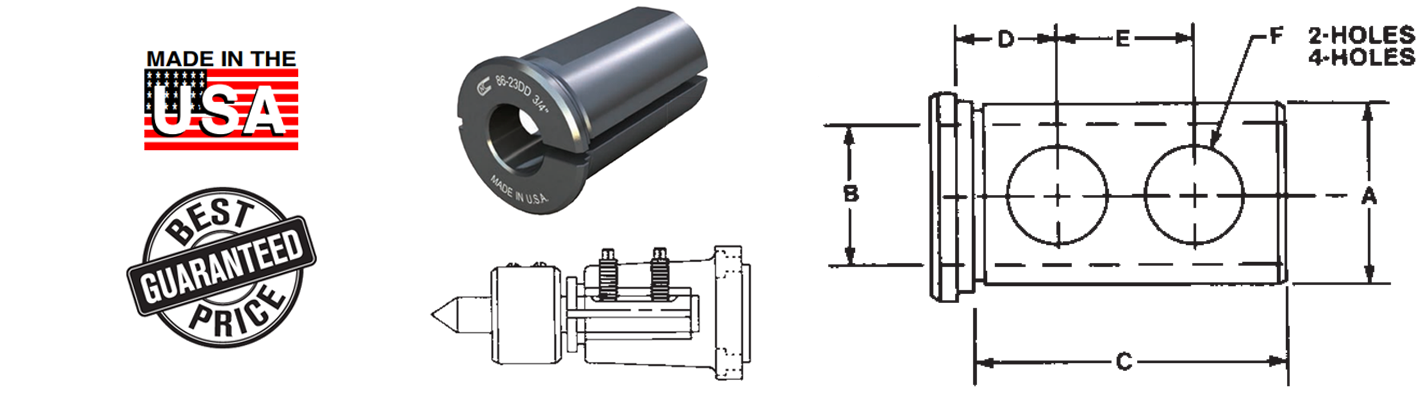

A C D E F B
40mm 2-1/2" 11/16" 1-1/8" 7/8" 2 10mm CNC 86-23DDM 10mm
12mm CNC 86-23DDM 12mm
16mm CNC 86-23DDM 16mm
20mm CNC 86-23DDM 20mm
25mm CNC 86-23DDM 25mm
32mm CNC 86-23DDM 32mm
45mm 3" 3/4" 1-1/4" 7/8" 2 12mm CNC 86-24DDM 12mm
16mm CNC 86-24DDM 16mm
20mm CNC 86-24DDM 20mm
25mm CNC 86-24DDM 25mm
32mm CNC 86-24DDM 32mm
40mm CNC 86-24DDM 40mm
50mm 3-1/2" 3/4" 1-1/2" 1" 2 12mm CNC 86-25DDM 12mm
16mm CNC 86-25DDM 16mm
20mm CNC 86-25DDM 20mm
25mm CNC 86-25DDM 25mm
32mm CNC 86-25DDM 32mm
45mm CNC 86-25DDM 45mm
50mm CNC 86-25DDM 50mm
65mm 4" 7/8" 1-3/4" 1-1/4" 2 20mm CNC 86-26DDM 20mm
25mm CNC 86-26DDM 25mm
32mm CNC 86-26DDM 32mm
40mm CNC 86-26DDM 40mm
45mm CNC 86-26DDM 45mm
50mm CNC 86-26DDM 50mm
80mm 4-1/2" 1" 2" 1-1/4" 4 25mm CNC 86-27DDM 25mm
32mm CNC 86-27DDM 32mm
40mm CNC 86-27DDM 40mm
45mm CNC 86-27DDM 45mm
50mm CNC 86-27DDM 50mm
60mm CNC 86-27DDM 60mm
65mm CNC 86-27DDM 65mm
90mm 5-1/4" 1-1/4" 2-1/2" 1-1/4" 4 25mm CNC 86-28DDM 25mm
32mm CNC 86-28DDM 32mm
40mm CNC 86-28DDM 40mm
45mm CNC 86-28DDM 45mm
50mm CNC 86-28DDM 50mm
60mm CNC 86-28DDM 60mm
65mm CNC 86-28DDM 65mm
