PB-ES Special Purpose Power Chucks

Pneumatic power chuck
  • Air chuck for external clamping with built-in pneumatic cylinder.
  • Fast and clamping jaw stroke.
  • Clamping pressure control.
  • Clamping stroke control.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Through-Hole
(mm)		 Total
Stroke / Jaw
(mm)		 Fast
Stroke / Jaw
(mm)		 Clamping
Stroke / Jaw
(mm)		 Piston
Area
(cm²)		 Operating
Pressure
Min.-Max.
(bar)		 Gripping*
Force
(kN)		 Max. Speed
(r.p.m.)		 Weight
(kg)		 Moment
Of Inertia
I
(kg．m²)		 Air*
Consumption
(L)		 SPEC Part Number Price Each
275 25.4 16.9 8.5 954 2-10 180 1100 360 20.6 39.5 600-275 Call or Email
375 25.4 13.4 12 1342 2-10 250 750 980 110 68 850-375 Call or Email
*When operating pressure at 6 bar.

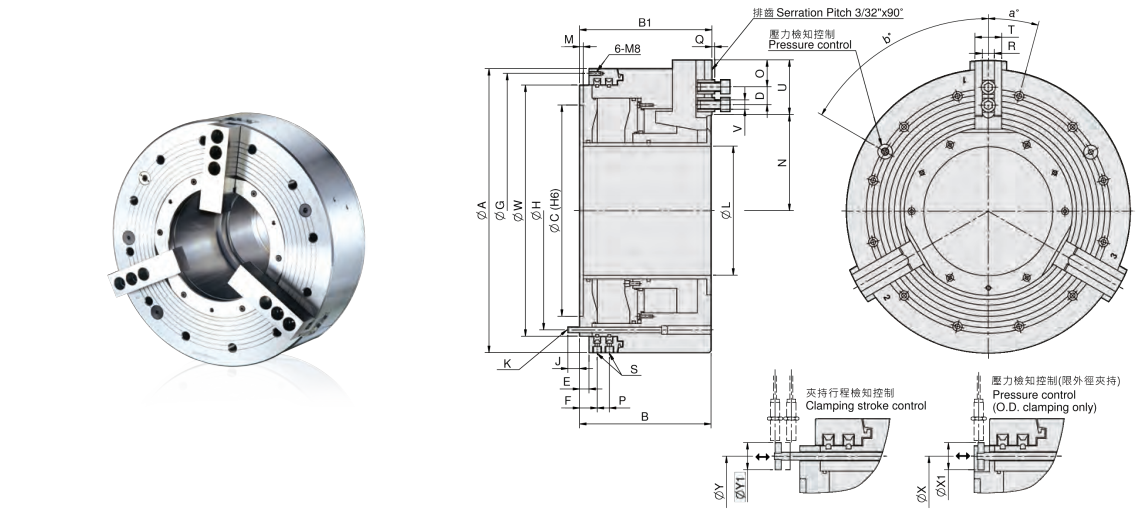

A B B1 C D E F G H J K L M N O
min.		 P Q R S T U V W X X1 Y Y1 ao bo DIM Part Number Price Each
max. min. max. min.
605 280 282 450 79 38 20 37 585 508 25 12-M12 275 8 204.6 179.2 14 26 3 25.5 G1/2 57 116.5 M20 535 508 35 508 35 15 60 600-275 Call or Email
850 352 354 700 140 47 25 44.5 830 745 30 12-M16 375 8 268 242.6 16 33 4 30 G1/2 75 182 M24 775 745 35 745 35 15 60 850-375 Call or Email
