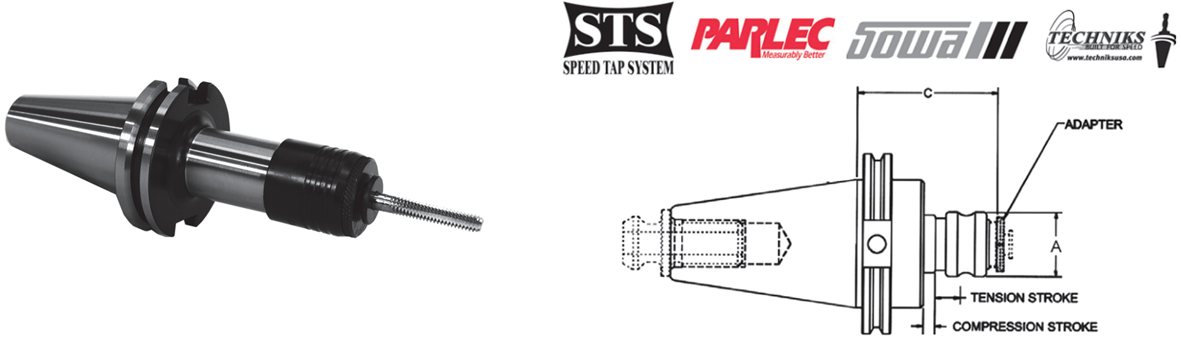

CAT 40 Taper Quick Change Tap Holders

CAT TAPER TAP HOLDERS
Tension / Compression and Rigid Tapping
  • For use with Industry Standard Quick-Change Tap Collets
  • Available for tension/compression or rigid tapping
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
CAT 40 TAPER
Adapter Size Capacity C Proj Comp Tension A Dia Brand Part Number Code
TENSION/COMPRESSION
1 #0 - 9/16" Hand,
1/16" & 1/8" NPT
2.360 0.350 0.350 1.500 Techniks C40-10TA236-T B
3.000 0.300 0.300 1.250 STS C40-10TA300-U D
#0 - 9/16" Hand,
1/8" NPT
4.000 0.290 0.290 1.430 Sowa C40-10TA400-G C
2 5/16" - 7/8" Hand, 1/4", 3.810 0.492 0.492 1.960 STS C40-20TA381-U D
5/16" - 7/8" Hand,
1/4" - 1/2" NPT
4.500 0.490 0.490 2.090 Sowa C40-20TA450-G C
3.940 0.590 0.590 2.170 Techniks C40-20TA394-T B
3 13/16" - 1 3/8" Hand,
3/4" - 1" NPT
5.430 0.940 0.940 3.110 Techniks C40-30TA543-T B
5.780 0.787 0.787 3.070 STS C40-30TA578-U D
RIGID TAPPING
1 #0 - 9/16" Hand,
1/8" NPT
2.320 Rigid Rigid 1.310 Techniks C40-10FS232-T B
3.020 Rigid Rigid 1.250 Sowa C40-10FS302-G C
#0 - 9/16" Hand,
1/16" & 1/8" NPT
3.440 Rigid Rigid 1.250 STS C40-10FS344-U D
3.960 Rigid Rigid 1.390 Parlec C40-10TR396-P B
2 5/16" - 7/8" Hand,
1/4", 3/8" & 1/2" NPT
3.230 Rigid Rigid 1.970 Techniks C40-20FS323-T B
3.430 Rigid Rigid 1.960 STS C40-20FS343-U D
5/16" - 7/8" Hand 3.660 Rigid Rigid 2.000 Sowa C40-20FS366-G C
3 13/16" - 1- 3/8" Hand,
1/2" - 1" NPT
4.720 Rigid Rigid 2.870 Sowa C40-30FS472-G C
13/16" -1 3/8" Hand,
3/4" - 1" NPT
4.720 Rigid Rigid 2.830 STS C40-30FS472-U D
