Type DD Bushings

TYPE DD BUSHINGS
Combination of the industry standard “B” style split bushing and “J” set screw clearance bushing design.
This bushing with clearance holes and split milled flat can be used as a conventional “B” style or “J” style bushing.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

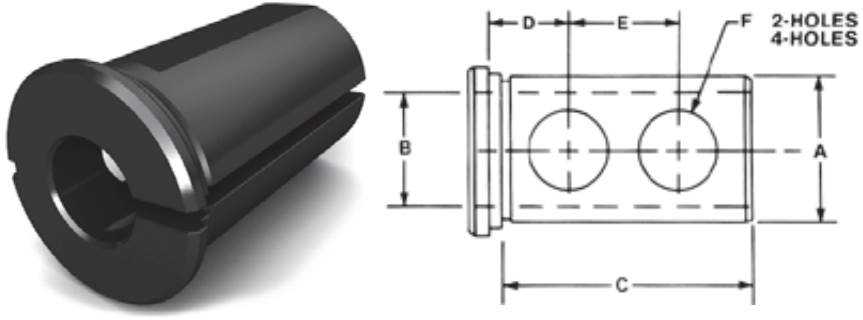

A
Outside Dia
C
Length Under Head
D E F
Hole Size
No. of Holes B
Inside Dia.
Part Number
1-1/2" 2-1/2" 11/16" 1-1/8" 7/8" 2" 3/8" TBDD-15-0375
1/2" TBDD-15-0500
5/8" TBDD-15-0625
3/4" TBDD-15-0750
7/8" TBDD-15-0875
1" TBDD-15-1000
1-1/4" TBDD-15-1250
1-3/4" 3" 3/4" 1-1/4" 7/8" 2" 1/2" TBDD-17-0500
5/8" TBDD-17-0625
3/4" TBDD-17-0750
7/8" TBDD-17-0875
1" TBDD-17-1000
1-1/4" TBDD-17-1250
1-1/2" TBDD-17-1500
2" 3-1/2" 3/4" 1-1/2" 1" 2" 1/2" TBDD-20-0500
5/8" TBDD-20-0625
3/4" TBDD-20-0750
7/8" TBDD-20-0875
1" TBDD-20-1000
1-1/4" TBDD-20-1250
1-1/2" TBDD-20-1500
1-3/4" TBDD-20-1750
2-1/2" 4" 7/8" 1-3/4" 1-1/4" 2" 1/2" TBDD-25-0500
5/8" TBDD-25-0625
3/4" TBDD-25-0750
7/8" TBDD-25-0875
1" TBDD-25-1000
1-1/4" TBDD-25-1250
1-1/2" TBDD-25-1500
1-3/4" TBDD-25-1750
2" TBDD-25-2000
2-1/4" TBDD-25-2250
3" 4-1/2" 1" 2" 1-1/4" 4" 1" TBDD-30-1000
1-1/4" TBDD-30-1250
1-1/2" TBDD-30-1500
1-3/4" TBDD-30-1750
2" TBDD-30-2000
2-1/4" TBDD-30-2250
2-1/2" TBDD-30-2500
3-1/2" 5-1/4" 1-1/4" 2-1/2" 1-1/4" 4" 1-1/2" TBDD-35-1500
1-3/4" TBDD-35-1750
2" TBDD-35-2000
2-1/4" TBDD-35-2250
2-1/2" TBDD-35-2500
3" TBDD-35-3000
