KD Series Chuck
![](http://usatoolandsupply.com/cdn/shop/t/2/assets/kd.png?v=145003661333673177061591159633)
camlock direct mounting, 2-piece jaws
(ASA spindle nose D1-4, D1-5, D1-6, D1-8)
American standard camlock type with 2-piece reversible hard top jaws.
- Gripping accuracy of 0.03mm (0.0012 inch) T.I.R..
- Standard accessories chuck wrench, hex. key. and a set of mounting bolts. (UNC-bolts)
- The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.

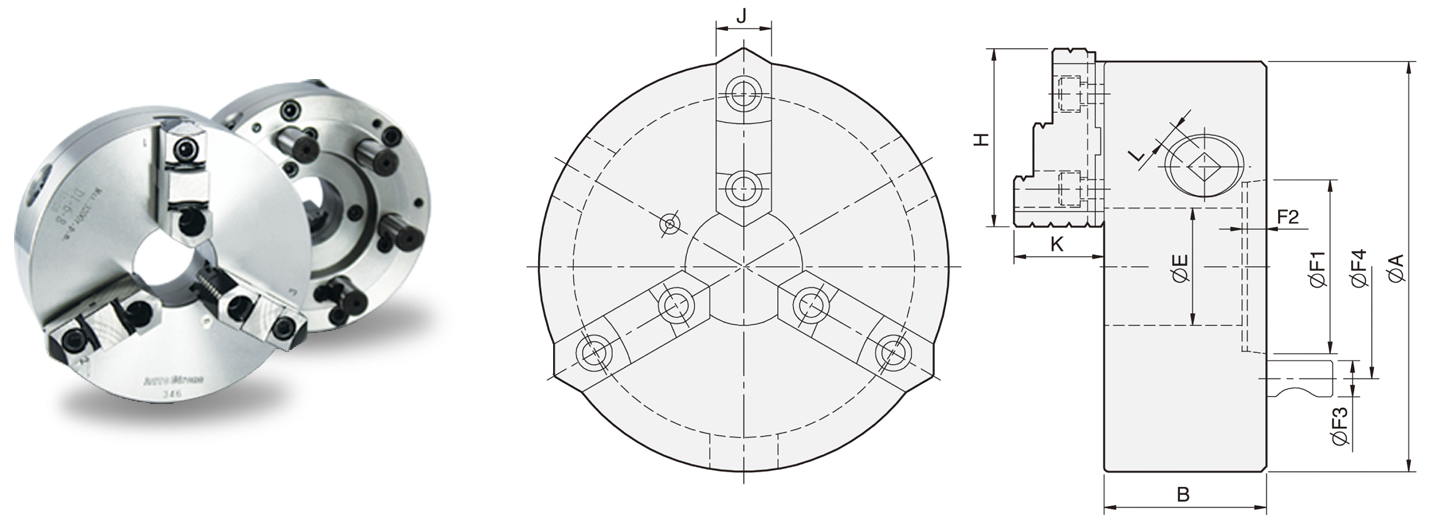

Spindle Size |
A | B | E | H | J | K | L | Mounting Dimensions |
Allowable Handle Torque (kgf.m) |
Gripping Force (kgf) |
Max. Speed (r.p.m.) |
Weight (kg) |
Moment Of Inertia I (kg .m²) |
Gripping Range O.D. Range / I.D. Range |
Part Number | Price Each | |||
F1 | F2 | F3 | F4 | ||||||||||||||||
D1-4 | 165 | 71 | 40 | 72 | 26 | 39.5 | 10 | 63.513 | 13 | 15.8 | 82.55 | 9.0 | 2200 | 2000 | 11 | 0.04 | Ø8-Ø160 / Ø55-Ø150 | KD4-6" | Call or Email |
D1-4 | 200 | 77.2 | 53 | 82 | 28 | 42.2 | 11 | 63.513 | 13 | 15.8 | 82.55 | 11.5 | 2500 | 2000 | 18.5 | 0.07 | Ø8-Ø180 / Ø62-Ø170 | KD4-8" | Call or Email |
D1-5 | 200 | 77.2 | 55 | 82 | 28 | 42.2 | 11 | 82.563 | 16 | 19 | 104.78 | 11.5 | 2500 | 2000 | 18 | 0.07 | Ø8-Ø180 / Ø62-Ø170 | KD5-8" | Call or Email |
D1-6 | 200 | 77.2 | 58 | 82 | 28 | 42.2 | 11 | 106.375 | 17 | 22.2 | 133.35 | 11.5 | 2500 | 2000 | 17 | 0.07 | Ø8-Ø180 / Ø62-Ø170 | KD6-8" | Call or Email |
D1-6 | 250 | 86 | 76 | 90.9 | 32 | 50.8 | 12 | 106.375 | 17 | 22.2 | 133.35 | 19.5 | 4000 | 1800 | 29.5 | 0.2 | Ø11-Ø220 / Ø70-Ø210 | KD6-10" | Call or Email |
D1-6 | 306 | 107.5 | 103 | 114.5 | 40 | 57.8 | 14 | 106.375 | 13.5 | 22.2 | 133.35 | 21.0 | 4200 | 1800 | 47 | 0.5 | Ø15-Ø300 / Ø90-Ø290 | KD6-12" | Call or Email |
D1-8 | 250 | 86 | 80 | 90.9 | 32 | 50.8 | 12 | 139.719 | 19 | 25.4 | 171.45 | 19.5 | 4000 | 1800 | 27 | 0.2 | Ø11-Ø220 / Ø70-Ø210 | KD8-10" | Call or Email |
D1-8 | 306 | 107.5 | 103 | 114.5 | 40 | 57.8 | 14 | 139.719 | 18 | 25.4 | 171.45 | 21.0 | 4200 | 1800 | 47 | 0.5 | Ø15-Ø300 / Ø90-Ø290 | KD8-12" | Call or Email |
