SOFT JAWS POINTED - METRIC TONGUE & GROOVE **FOR USE ON: Forkardt, Rohm & SMW Chucks
- Metric tongue & groove
- Supplies maximum concentricity on finish turning operations
- Can be bored or turned to fit workpiece
- Steel jaws can be hardened
- Available flat ended or pointed for smaller diameter parts
- Special orders available
- Available in Aluminum & Steel

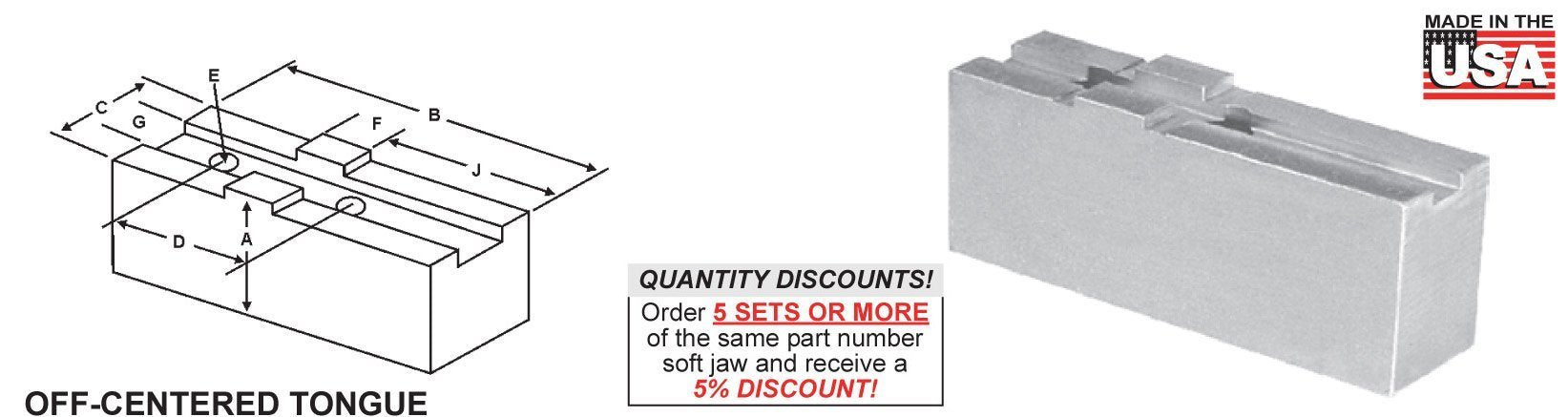

| Critical Dimensions | ALUMINUM | STEEL | ||||||||||
| Group No. |
Chuck Size | Groove Width G |
Tongue Width F |
Screw Size E |
Hole Space D |
Hght Inch A |
Tongue to Front J |
Tongue Position | Width Inch C |
Length Inch B |
POINTED END Part Number |
POINTED END Part Number |
| TK-08-5/16-32 | 6 | 0.315 (8mm) | 0.708 | 5/16 | 1.260 (32mm) | 1.50 | 1.660 | Offset | 0.750 | 3.375 | SW-6150AP | SW-6150P |
| 3.00 | 1.660 | Offset | 0.750 | 3.375 | SW-6300AP | SW-6300P | ||||||
| TK-10-5/16-40 | 8 | 0.393 (10mm) | 0.787 | 5/16 | 1.575 (40mm) | 2.00 | 1.970 | Offset | 1.250 | 4.125 | SW-8200AP | SW-8200P |
| 4.00 | 1.970 | Offset | 1.250 | 4.125 | SW-8400AP | SW-8400P | ||||||
| TK-12-1/2-40 | 10 | 0.472 (12mm) | 0.787 | 1/2 | 1.575 (40mm) | 2.00 | 2.750 | Offset | 1.500 | 5.000 | SW-10200AP | SW-10200P |
| 4.00 | 2.750 | Offset | 1.500 | 5.000 | SW-10400AP | SW-10400P | ||||||
| TK-12-1/2-54 | 12 | 0.472 (12mm) | 1.023 | 1/2 | 2.126 (54mm) | 2.00 | 2.937 | Offset | 1.750 | 5.750 | SW-12200AP | SW-12200P |
| 4.00 | 2.937 | Offset | 1.750 | 5.750 | SW-12400AP | SW-12400P | ||||||
| TK-18-5/8-60 | 16 | 0.708 (18mm) | 1.181 | 5/8 | 2.362 (60mm) | 3.00 | 3.937 | Offset | 2.000 | 7.250 | SW-16300AP | SW-16300P |
| 5.00 | 3.937 | Offset | 2.000 | 7.250 | SW-16500AP | SW-16500P | ||||||
