ER 40 Coolant Collets

Accu-Collets & Lyndex ER COLLETS
ER INCH & METRIC COOLANT COLLETS

Unique patented design is solid steel construction ensuring longer life.
No discs, plugs or other hardware needed.
Accu-Collets have rubber plugs
Maximum pressure of 1000 psi.
Drill insertion does not need to be longer than the collet length.
Lyndex coolant style ER collets feature a unique patented design which staggers the slots to prevent coolant from reaching the face of the collet.

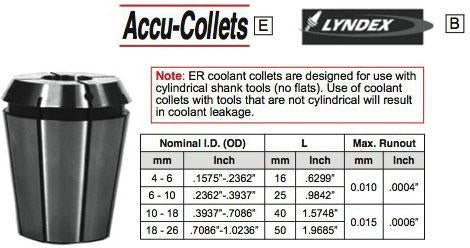

Note ER coolant collets are designed for use with cylindrical shank tools (no flats). Use of coolant collets with tools that are not cylindrical will result in coolant leakage.

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

			Accu-Collets	Lyndex
Frac	MM	Dec.
5/32	-	0.1560	40-0156-5/32C	-
-	4.0	0.1570	40-0157-4.0C	-
3/16	-	0.1870	40-0187-3/16C	-
-	5.0	0.1960	40-0196-5.0C	-
7/32	-	0.2180	40-0218-7/32C	-
-	6.0	0.2360	40-0236-6.0C	-
1/4	-	0.2500	40-0250-1/4C	-
-	7.0	0.2750	40-0275-7.0C	-
9/32	-	0.2810	40-0281-9/32C	-
5/16	-	0.3120	40-0312-5/16C	-
-	8.0	0.3150	40-0315-8.0C	-
11/32	-	0.3430	40-0343-11/32C	-
-	9.0	0.3540	40-0354-9.0C	-
3/8	-	0.3750	40-0375-3/8C	-
-	10.0	0.3930	40-0393-10.0C	40-0393-10.0CL
13/32	-	0.4060	40-0406-13/32C	-
-	11.0	0.4330	40-0433-11.0C	40-0433-11.0CL
7/16	-	0.4370	40-0437-7/16C	-
15/32	-	0.4680	40-0468-15/32C	-
-	12.0	0.4720	40-0472-12.0C	40-0472-12.0CL
1/2	-	0.5000	40-0500-1/2C	-
-	13.0	0.5110	40-0511-13.0C	40-0511-13.0CL
17/32	-	0.5310	40-0531-17/32C	-
-	14.0	0.5510	40-0551-14.0C	40-0551-14.0CL
9/16	-	0.5620	40-0562-9/16C	-
-	15.0	0.5900	40-0590-15.0C	40-0590-15.0CL
19/32	-	0.5930	40-0593-19/32C	-
5/8	-	0.6250	40-0625-5/8C	-
-	16.0	0.6300	40-0630-16.0C	40-0630-16.0CL
21/32	-	0.6560	40-0656-21/32C	-
-	17.0	0.6690	40-0669-17.0C	40-0669-17.0CL
11/16	-	0.6870	40-0687-11/16C	-
-	18.0	0.7080	40-0708-18.0C	40-0708-18.0CL
23/32	-	0.7180	40-0718-23/32C	-
-	19.0	0.7480	40-0748-19.0C	40-0748-19.0CL
3/4	-	0.7500	40-0750-3/4C	-
25/32	-	0.7810	40-0781-25/32C	-
-	20.0	0.7870	40-0787-20.0C	40-0787-20.0CL
13/16	-	0.8120	40-0812-13/16C	-
-	21.0	0.8260	40-0826-21.0C	40-0826-21.0CL
27/32	-	0.8430	40-0843-27/32C	-
-	22.0	0.8660	40-0866-22.0C	40-0866-22.0CL
7/8	-	0.8750	40-0875-7/8C	-
-	23.0	0.9050	40-0905-23.0C	40-0905-23.0CL
29/32	-	0.9060	40-0906-29/32C	-
15/16	-	0.9370	40-0937-15/16C	-
-	24.0	0.9440	40-0944-24.0C	40-0944-24.0CL
31/32	-	0.9680	40-0968-31/32C	-
-	25.0	0.9840	40-0984-25.0C	40-0984-25.0CL
1	-	1.0000	40-1000-1-INC	-
-	26.0	1.0236	40-1024-26.0C	40-1024-26.0CL
