Boring Bar Sleeves - (Inch OD - Metric ID)
![](http://usatoolandsupply.com/cdn/shop/t/2/assets/boringsleeves.png?v=113811333432301522341591161602)
CNC Boring Bar Sleeves are universally used to adapt all Boring Bar or shank type tools to any CNC Turning Machines and Machining Centers for extensions or hard to reach areas. They are hardened, precision ground, concentric, and black oxided for long lasting protection.
*This NEW innovative design on the 1-1/2" O.D. boring bar sleeves helps the tools stay cool longer by projecting the coolant directly on the cutting edge.
Boring Bar Sleeves Also Available In: Click Here
- Inch OD – Inch ID
- Metric OD – Inch ID
- Metric OD – Metric ID

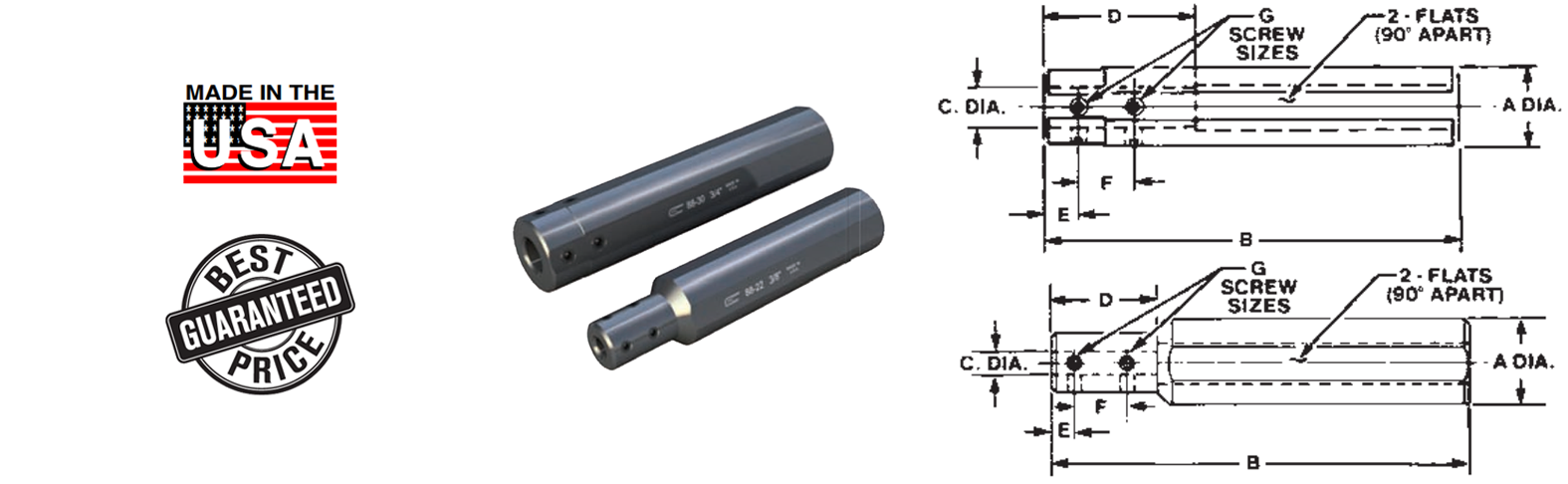

OD | OAL | ID | Part Number | Screw Size |
|||
A | B | D | E | F | C | ||
3/4" | 5" | 1-1/2" | 5/16" | 5/8" | 6mm | CNC 8815 6mm | 10-32 |
1-1/2" | 5/16" | 5/8" | 8mm | CNC 8816 8mm | |||
1-1/2" | 5/16" | 5/8" | 10mm | CNC 8817 10mm | |||
3" | 5/16" | 5/8" | 12mm | CNC 8818 12mm | |||
1" | 6" | 1-3/4" | 7/16" | 5/8" | 8mm | CNC 8819 8mm | 1/4-28 |
1-3/4" | 7/16" | 5/8" | 10mm | CNC 8820 10mm | |||
2" | 7/16" | 5/8" | 12mm | CNC 8821 12mm | |||
1-1/4" | 6-1/2" | 1-1/2" | 5/16" | 5/8" | 10mm | CNC 88125 10mm | 1/4-28 |
2-1/4" | 7/16" | 5/8" | 12mm | CNC 88126 12mm | |||
2-1/2" | 7/16" | 3/4" | 16mm | CNC 88127 16mm | |||
3" | 7/16" | 3/4" | 20mm | CNC 88128 20mm | |||
4" | 7/16" | 3/4" | 22mm | CNC 88129 22mm | 10-32 | ||
4" | 7/16" | 3/4" | 25mm | CNC 88130 25mm | |||
1-1/2" | 7" | 2" | 5/16" | 5/8" | 10mm | CNC 8822 10mm | 1/4-28 |
2-1/4" | 7/16" | 11/16" | 12mm | CNC 8823 12mm | 5/16-24 | ||
2-1/4" | 7/16" | 3/4" | 16mm | CNC 8824 16mm | |||
2-1/2" | 7/16" | 3/4" | 20mm | CNC 8825 20mm | |||
8" | 3" | 7/16" | 3/4" | 22mm | CNC 8826 22mm | 1/4-28 | |
4" | 7/16" | 7/8" | 25mm | CNC 8827 25mm | |||
1-3/4" | 8" | 2-1/2" | 5/16" | 5/8" | 12mm | CNC 8828 12mm | 5/16-24 |
2-1/2" | 7/16" | 1" | 16mm | CNC 8829 16mm | |||
2-1/2" | 7/16" | 1" | 20mm | CNC 8830 20mm | 3/8-24 | ||
2-1/2" | 7/16" | 1" | 22mm | CNC 8831 22mm | |||
2-1/2" | 7/16" | 1" | 25mm | CNC 8832 25mm | |||
2" | 9" | 2" | 7/16" | 1" | 16mm | CNC 8834 16mm | 7/16-20 |
2-3/4" | 7/16" | 1" | 20mm | CNC 8835 20mm | |||
2" | 7/16" | 1" | 22mm | CNC 8833 22mm | |||
3-1/2" | 7/16" | 1" | 25mm | CNC 8836 25mm | 1/2-20 | ||
3" | 5/8" | 1" | 32mm | CNC 8837 32mm | |||
2-1/2" | 10" | 3-1/2" | 7/16" | 1" | 16mm | CNC 8838 16mm | 1/2-20 |
3-1/2" | 7/16" | 1" | 20mm | CNC 8839 20mm | |||
4" | 7/16" | 1" | 25mm | CNC 8840 25mm | |||
4" | 5/8" | 1" | 32mm | CNC 8841 32mm | |||
3-1/2" | 1/2" | 1" | 40mm | CNC 8842 40mm | |||
3" | 11-1/2" | 4" | 1/2" | 1" | 25mm | CNC 8845 25mm | 1/2-20 |
3-1/2" | 1/2" | 1" | 32mm | CNC 8843 32mm | |||
4-1/2" | 1/2" | 1" | 40mm | CNC 8844 40mm | |||
3-3/4" | 5/8" | 1-1/4" | 45mm | CNC 8847 45mm | |||
4-1/2" | 1/2" | 1" | 50mm | CNC 8846 50mm | |||
4" | 14" | 3-3/4" | 19/32" | 1-7/8" | 40mm | CNC 8850 40mm | 5/8-18 |
3-3/4" | 5/8" | 1-7/8" | 45mm | CNC 8851 45mm | |||
3-3/4" | 19/32" | 1-3/4" | 50mm | CNC 8852 50mm | |||
4" | 5/8" | 2" | 65mm | CNC 8853 65mm | |||
4" | 3/4" | 1-1/4" | 80mm | CNC 8854 80mm |
